Imported HiAce servicing starts with the engine code, not the manual

Imported HiAce servicing isn’t harder than servicing a local van. It’s just that nobody hands you the numbers. Australian-delivered HiAces came with three engines, Japanese ones came with more, and the fluid specs don’t carry across. Start with the engine code.

Which engine is actually in your imported HiAce?

Most imported H200 HiAces run one of two engines, a 2.7-litre petrol or a 3.0-litre diesel, which are the same two capacities Toyota sold here as the 2TR-FE and the 1KD-FTV, according to Bare Camper’s HiAce import guide. If yours is one of those, filters and fluids come off the shelf and your mechanic has seen the engine before.

The trouble starts with the vans that aren’t. The Toyota-Club technical data for the Australian-market HiAce covers only three engines, the 2TR-FE petrol plus the 2KD-FTV and 1KD-FTV diesels. An import fitted with anything else won’t match those fluid figures at all.

Older imports are where that bites. Australian HiAce specialist Rising Rides names the 3L, 5L and 1KZ-TE among the diesels you’ll find in Japanese vans, and none of them share a service spec with the engine a local workshop is used to. Find the engine code before you book anything, because a HiAce chassis code on its own tells you less than the seller implies.

Parts supply follows the same split. Bare Camper reports H200 parts are readily available in Australia, while the newer H300 still has fewer conversion parts in circulation. If you haven’t bought yet, that difference is worth more thought than the sticker price, and the two paths are set out in our comparison of a JDM import against an Australian-delivered HiAce.

Does your HiAce have a timing belt or a chain?

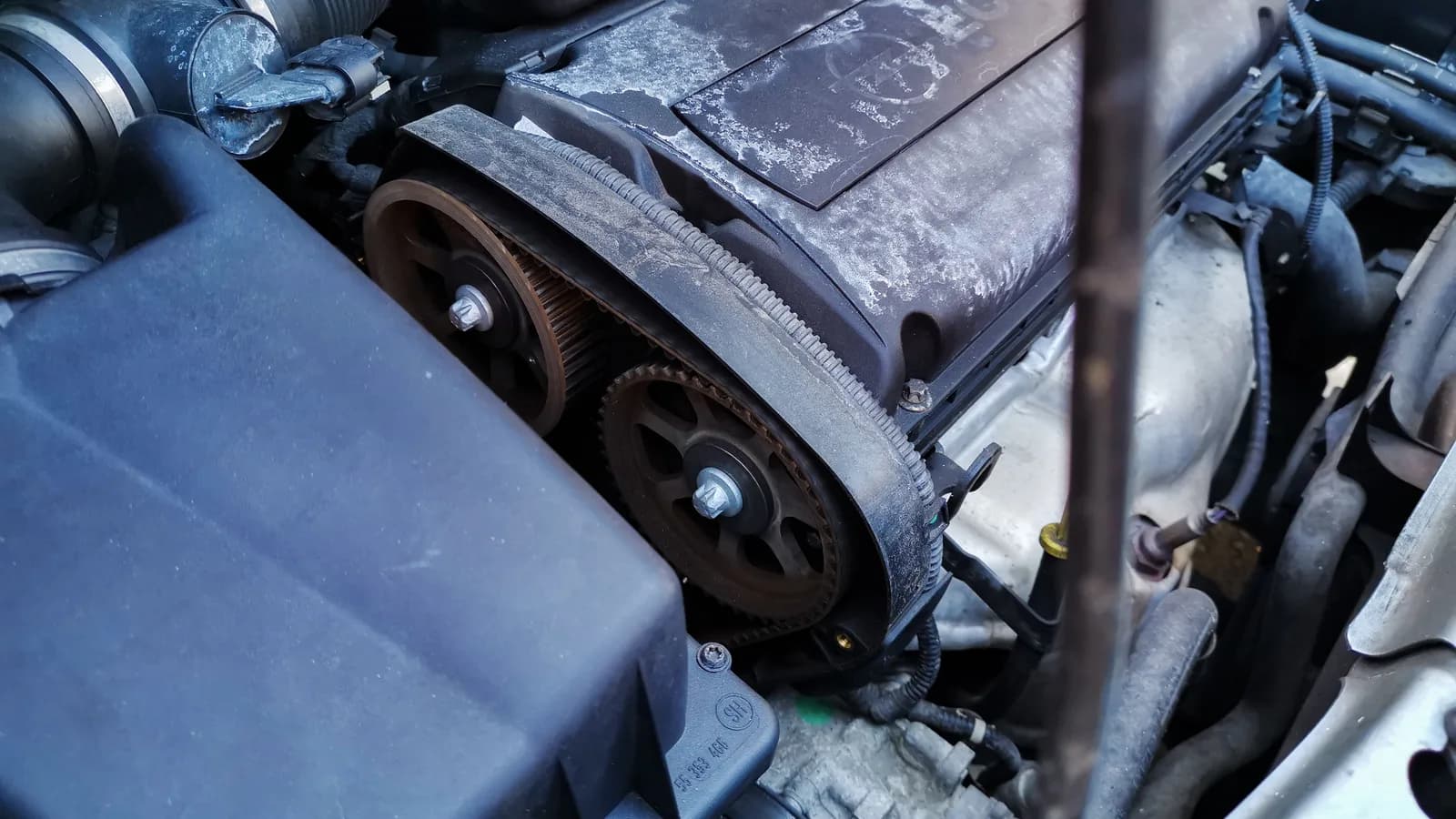

That depends on the engine fitted, not the year, the badge or the body shape. Rising Rides lists the HiAce diesels that run a rubber timing belt rather than a chain as the 1KD-FTV, 2KD-FTV, 3L, 5L and 1KZ-TE, so five engines out of the range need a belt in the maintenance plan and the rest don’t.

For those engines, Rising Rides puts the replacement point at around 150,000km, while noting the correct interval shifts with the engine, the market the van was sold into, its age and how hard it has worked. Dusty, rough or heavily loaded work pulls the number in.

Where there’s no clear record of a belt change, Rising Rides says to treat the belt as due rather than guess, because an overdue belt that lets go can do serious engine damage. Japanese service books are often stamped rather than written out, which is why a pre-purchase inspection beats reading the auction sheet. Assume the worst until a receipt says otherwise, and price a belt kit into the first year.

What oil and coolant does it take?

Each engine has its own published fill quantity and specification, and they aren’t interchangeable. Toyota-Club’s figures put the 2KD-FTV 2.5-litre diesel at 6.5 litres of oil with the filter, the 1KD-FTV 3.0-litre at 7.0 litres and the 2TR-FE petrol at 5.3 to 5.5 litres. So a 1KD-FTV diesel takes roughly 1.5 litres more oil than the 2TR-FE petrol, which is worth knowing before you buy a five-litre bottle for a touring spare.

Coolant capacity moves with the heater layout, which matters because many Japanese vans carry a rear heater. Toyota-Club lists the diesel cooling system at 15.0 litres with a front heater only and 17.0 litres when a rear heater is fitted as well, and the figures drop again on later builds.

Engine	Oil with filter	Oil spec	Coolant capacity
2TR-FE 2.7 petrol, 2004 on	5.3 to 5.5L	API SL to SN or ILSAC	13.0L front heater, 15.0L with rear
2TR-FE 2.7 petrol, 2011 on	5.3 to 5.5L	API SL to SN or ILSAC	11.2 to 11.6L
2KD-FTV 2.5 diesel	6.5L	API CF to CF-4 or Toyota G-DLD-1	15.0L front heater, 17.0L with rear
1KD-FTV 3.0 diesel, 2006 on	7.0L	API CF to CF-4, G-DLD-1 or ACEA B1	15.0L to 17.0L, 14.2 to 14.6L from 2011
1KD-FTV 3.0 diesel, 2016 on	6.8L	ACEA C2 low-SAPS	14.2 to 14.6L

The 1KD-FTV didn’t stay still. From 2016 its oil fill drops to 6.8 litres and the specification changes to ACEA C2, a low-SAPS oil carrying reduced sulphated ash, phosphorus and sulphur to protect the exhaust hardware, where earlier versions took API CF to CF-4 grades, per the Toyota-Club data. Pouring the older grade into a later engine is a cheap mistake with an expensive ending.

How do you find a mechanic who’ll work on an imported HiAce?

Start with the workshop that complied it. Every import clears through a RAWS-approved workshop, the registered automotive workshop scheme that signs off a used vehicle for Australian roads, and Bare Camper budgets about $1,800 for that compliance work on a HiAce from Japan. That workshop has already had your van on a hoist and knows exactly what it is.

Beyond that, you want a workshop that quotes off an engine code instead of a rego lookup. Four questions sort them out fast.

• Which HiAce engines have you worked on, and have you done a timing belt on one?
• Can you source filters, belts and coolant against an engine code rather than a registration number?
• Do you have data for this engine, or are you working from the closest Australian equivalent?
• Will you write the engine code and the work done into a book I can hand to the next buyer?

A Toyota dealer can still handle mechanical work on a shared engine, but ring first with the engine and chassis codes, because the model may not exist in their system. If you’re weighing a dealer against an independent, it helps to know what capped price servicing actually covers on the vans that do qualify.

What service schedule makes sense for touring use?

Service a touring HiAce on condition and load rather than on the interval written for a city delivery van. Rising Rides points out that workshops weigh age, use and service history alongside the odometer, and that dusty, rough or high-load driving shortens what the book says. A camper crossing the Tanami works harder in a fortnight than a courier van does in a year.

Four habits cover most of it.

• Shorten the oil and filter interval if you spend real time on dirt, and use the grade the engine code calls for every single time.
• Treat the timing belt as a date as much as a distance, since a belt that sat in a Japanese car park for years has aged whether or not it has turned.
• Service before a long trip, not after it, and carry the filters the engine takes rather than hoping a country town stocks them.
• Keep an English-language log with the engine code at the top, which protects you at resale as well as at the next service.

Best for vans touring unsealed roads: pull the oil interval in, treat the belt as due unless a receipt proves otherwise, and pay for a workshop that writes the engine code on the invoice. Get those three right and the van behaves like any other Toyota, with HiAce running costs you can budget years ahead.
