A HiAce pre purchase inspection is worth more than the auction sheet

Most imported HiAce vans are sound, and the expensive ones look identical in photos. That is what a HiAce pre purchase inspection is for. Grading data published by AAA Japan shows a van graded 4 is unaccidented with up to 150,000km on it, while one graded R came out of a serious crash. Five checks decide which you are looking at, and the paperwork comes first.

How do I check the import paperwork on a HiAce?

Match the build date to the import rule before you look at anything else, because that is what makes the van legal rather than merely present. Australia’s rule rolls forward a year at a time, so a HiAce qualifies once it is 25 years past its build date, according to JDM Buy Sell. That put 1999-build H100 vans in play from 2024 and 2000 builds from 2025. The H200, which arrived in 2004, stays out until 2029.

That matters for a buyer standing in a dealer yard. An H200 already registered here did not arrive under that rule, so it came in on another approval pathway, and you want the compliance route for an imported HiAce named on paper rather than described verbally.

Then run the checks that apply to any used vehicle, imported or built here. NSW Government guidance for buyers sets out four, and on an import with no local service book they are some of the only hard facts you can get.

• Run a Personal Property Securities Register search at ppsr.gov.au, or ring 1300 007 777, to see whether money is still owed on the van.
• Look the van up on the written-off vehicle register, which flags a serious damage history.
• Satisfy yourself the odometer is telling the truth, and check that the rego is current.
• Price in the repairs and maintenance you are likely to be up for.

What does a Japanese auction sheet actually tell you?

It tells you the grade an independent inspector gave the van in Japan, which is the closest thing to a condition report you will get on a vehicle you cannot stand next to. The overall grade is the headline, and the AAA Japan grading guide sets out what each one covers.

Grade	What it means
S	As new, registered under a year, under 10,000km
5	Excellent, up to 50,000km, minor scratches or dents
4.5	Up to 100,000km, wear or repair marks
4	Unaccidented, up to 150,000km, scratches and worn trim
3.5	Scratches, dents, rust and torn trim
3	Visible major damage, paint problems, rust
2	Widespread corrosion plus a list of mechanical faults
1	Usually flood damaged

Two letter grades sit outside that scale and change the whole decision. RA says the van was put back together after a run-of-the-mill crash. R says the crash was serious, that any repair may not have finished the job, and that more work is likely.

The interior gets its own letter, from A for like-new down to E for wrecked. C is the grade for a few food stains or cigarette burns, and D adds tears, lingering smells and more burn marks.

The damage map matters more than the number. Every mark on the diagram is a letter. A for a scratch, U for a dent, E for the shallow dimple between them. W flags a repair, while S and C point at rust and corrosion. X means a panel still needs replacing, and XX means it already has been. A van with several W marks and an XX on a rear quarter is a different proposition to a clean one at the same grade, which is why reading the symbols on a Japanese auction sheet is worth the time it takes.

Which HiAce engine faults should I look for?

It depends entirely on which engine is in front of you, and Japanese-market vans came with a long list. JDM Buy Sell catalogues the diesels as the 3L at 2.8 litres and the 5L at 3.0 litres, both without a turbo, then the turbocharged 2L-TE at 2.4 litres, the 1KZ-TE at 3.0 litres, the 2KD-FTV at 2.5 litres, the common-rail 1KD-FTV at 3.0 litres and, from roughly 2017 in Japan, the 1GD-FTV at 2.8 litres. On petrol you will meet the 1RZ-E, 2RZ-E and 3RZ-FE, the VVT-i pair of 1TR-FE and 2TR-FE, and the 5VZ-FE V6 that only ever went into the Granvia and Grand HiAce. Confirm the engine from the van itself, since HiAce model codes are often quoted loosely in ads.

On the 1KD-FTV, Engine Zone dates worn injectors and weeping injector seals to somewhere between 100,000km and 150,000km. The symptoms are a knock at cold start that quietens as temperature comes up, an uneven idle, more smoke than you would expect and a reluctance to fire. Cracked pistons are the failure that ends the engine, most often on units built between 2005 and 2009, so listen for a hard knock, a cylinder that stops contributing, black smoke and crankcase pressure blowing out of the oil filler. Soot in the EGR and intake dulls throttle response, and it is worse on vans that only ever did short trips. Higher-kilometre examples also lose turbos and actuators, which shows up as low boost, over-boost or limp mode.

The 1KZ-TE fails differently, and JDM Buy Sell puts the cooling system at the top of its risk list. A tired thermostat, a radiator weeping slowly or a coolant change nobody got around to will warp the head, and the gasket and machining bill can match what you paid for the van. Set against that, the same engine has a documented record past 480,000km on its original injection hardware, so best for long-distance touring is a 1KZ-TE with provable coolant history rather than a 1KD-FTV at similar kilometres. The 2.4-litre 2L-TE is the one singled out for turbochargers that die early, usually after a blocked air filter or a lack of oil reaching the bearing.

Where does a HiAce rust, and how do I spot a bad repair?

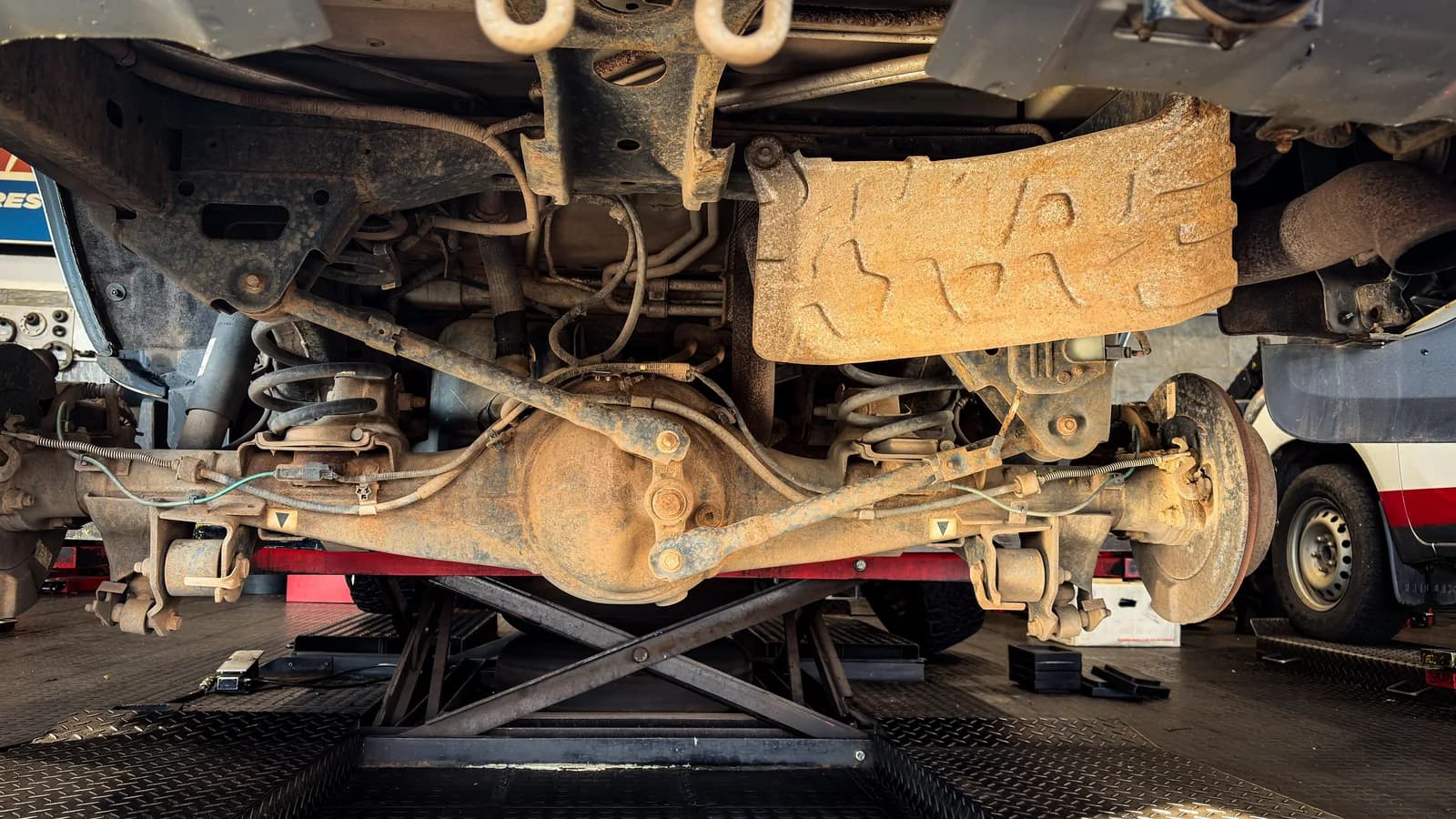

Start at the step wells, the arches behind the rear wheels and the seams running across the floor pan, plus anywhere factory seam sealer looks disturbed. JDM Buy Sell then widens the survey to the sills and outer arch lips, the tracks the sliding door runs on, the rear door hinges, the corners of the windscreen frame, the A-pillar seams, and the chassis rails and crossmembers underneath. Disturbed sealer is the real tell, because it usually means somebody has already been in there.

Accident repair gives itself away the same way. Fresh underseal over one patch of floor, panel gaps that drift around the sliding door, overspray on rubber seals and a rear quarter that reads differently to the panel beside it all point back to the W and X codes on the sheet. If the van has no sheet and no pre-export inspection report, the inspection is all you have.

What should a HiAce pre purchase inspection cover?

An independent inspection on a hoist, booked by you and not by the seller, covering the rust map, a cold start, a road test under load and the known failure points for that engine. Ask for the start to happen from stone cold, because that is when the injector knock on a 1KD-FTV is audible, and a warm engine hides it, per the fault list Engine Zone sets out. On a 1KZ-TE, ask for a cooling system pressure test and a look at the state of the coolant itself.

Have the odometer treated as a claim rather than a fact. JDM Buy Sell suggests testing the reading against service stickers and wear patterns, which is the only cross-check available when an auction sheet is the entire paper trail. Pedal rubbers, seat bolsters and the steering wheel should all agree with the number on the dash.

If you are buying sight-unseen, pay for a pre-export inspection in Japan rather than waiting to look at the van on arrival. Once it is landed, a van graded three with rust in the floor seams is your problem, and putting it right rarely costs less than the gap to a better one.
